TECAFINE PE1000 natural | Overview

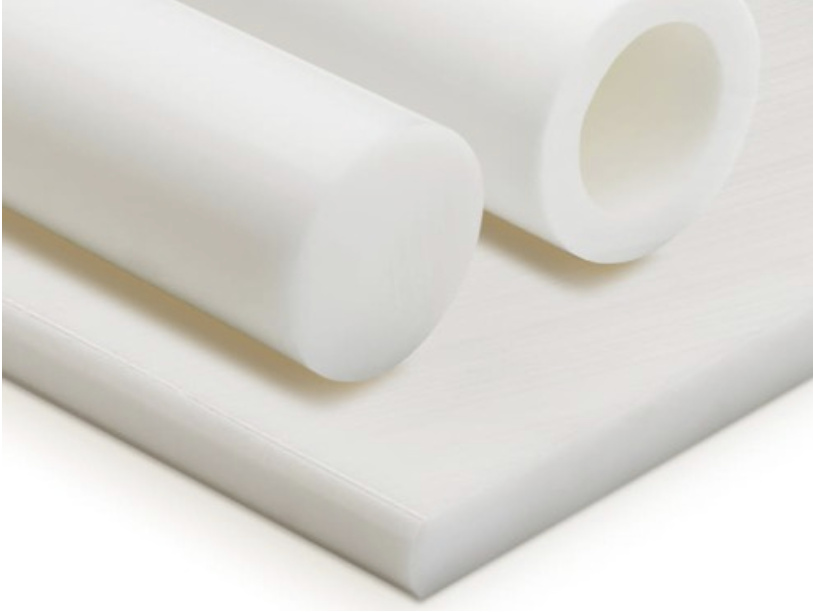

​TECAFINE PE1000 natural (PE UHMW) is an ultra-high molecular weight polyethylene thermoplastic engineering material with high impact strength, good wear/abrasion resistance, excellent chemical resistance and very good low temperature properties. PE1000 plastic is food contact approved, meeting FDA and (EU) No. 10/2011 regulations.

TECAFINE PE1000 natural | Description

Main Features
  • ultra high molecular weight
  • very good abrasion resistance
  • excellent impact strength
  • very good slide and wear properties

TECAFINE PE1000 natural | Parameters

Characteristics Value Units Test Method
Type PE
Color white opaque
Thickness 3 mm
Operation temperature -260 - 80 °C
Relative Density 0.93 g/cm³ DIN 53479
Coefficient of Thermal Expansion 1.8 * 10-4 K
Fire resistance B2
Tensile strength 19 Mpa DIN EN ISO 527
Shore Hardness 60 DIN EN ISO 868

TECAFINE PE1000 natural | Warranty

Technical data

All information and statements contained in this document are based on the manufacturer's or material supplier's sources known to us at the time of filing. PERLON, spol. s r.o. believes them to be reliable in good faith, but the accuracy and/or completeness of such information is not guaranteed. The data should be considered representative or typical only and should not be used for specification purposes. Manufacturers reserve the right to make changes to the design, construction and technical data of products without prior notice.

Use of the product

Many factors beyond the control of PERLON, spol. s r.o. and known only to the user may affect the use and performance of materials in a particular application. Therefore, we recommend that the customer perform their own tests of the suitability and performance of the material for their application and to a responsible extent for reliable results. As a result, the customer is solely responsible for evaluating the product and determining if it is suitable for the customer's application, including evaluating workplace hazards and reviewing all applicable regulations and standards. Failure to properly evaluate, use, or comply with all applicable safety regulations may result in injury, illness, death, and/or property damage if the material and associated safety is not properly evaluated. PERLON, spol. s r.o. makes no warranties of fitness for a particular purpose.

Limitation of liability

PERLON, spol. s r.o.  shall not be liable for any loss or damage arising out of or relating to the product material, whether direct, indirect, special, incidental or consequential (including, but not limited to, loss of products or business), regardless of the applicable legal practice, including but not limited to warranty, contract, negligence or strict liability.
