Nomex 410 | Overview

Nomex® 410 is a family of insulation papers that offer high inherent dielectric strength, mechanical toughness, flexibility and resilience. Nomex® 410, the original form of Nomex® paper, is widely used in a majority of electrical equipment applications. Available in 11 thicknesses ranging from 0.05 mm to 0.76 mm (2 mil to 30 mil), Nomex® 410 is used in almost every known electrical sheet insulation application.

Nomex 410 | Description

Nomex 410 | Parameters

Characteristics Value Units Test Method
Series 410
Aplication use Electrical insulation

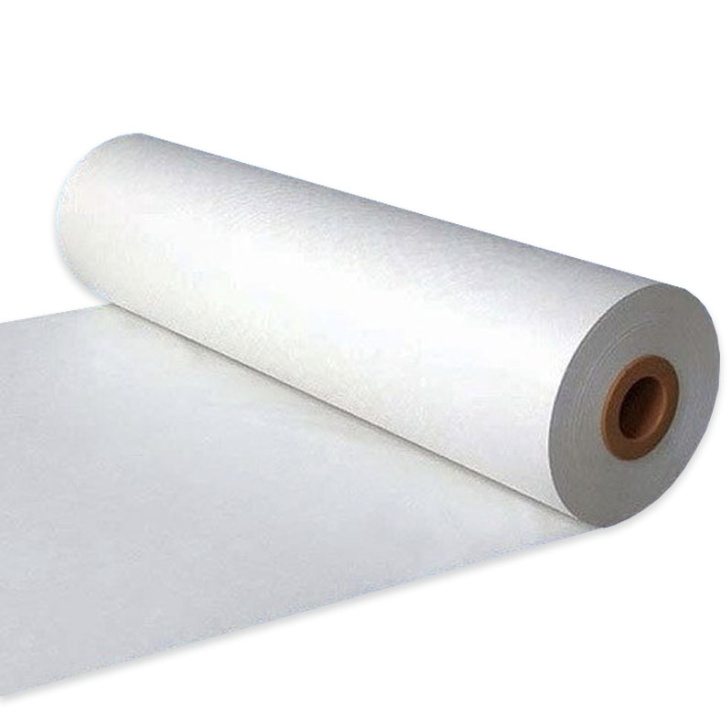

Shape Roll
Thickness 0.25
Operation temperatures - 220
Dielectric Strength 845 V/mil ASTM D149
Full Wave Impulse 1600 V/mil ASTM D3426
Dielectric Constant at 60 Hz 2.7 ASTM D150
Dissipation Factor at 60 Hz (x 10-³) 6 ASTM D150
